Real-Time Colored Wastewater Detector for Industrial Applications

Slideshow Items

  • Colored wastewater detector sensor
  • Colored wastewater detector control unit - Image 2

ECD-100 Color Overview

Intelligent, cost-effective real-time monitoring of color pollution in wastewater

Instantly detect discoloration in industrial wastewater without complex systems or expensive installation. The ECD-100 Colored Wastewater Detector combines simplicity, reliability, and continuous monitoring in a single, robust design. The system detects subtle color changes using intelligent visible light transmission (iVLT) with RGB-LED. Ideal for wastewater treatment, process control, and environmental compliance.

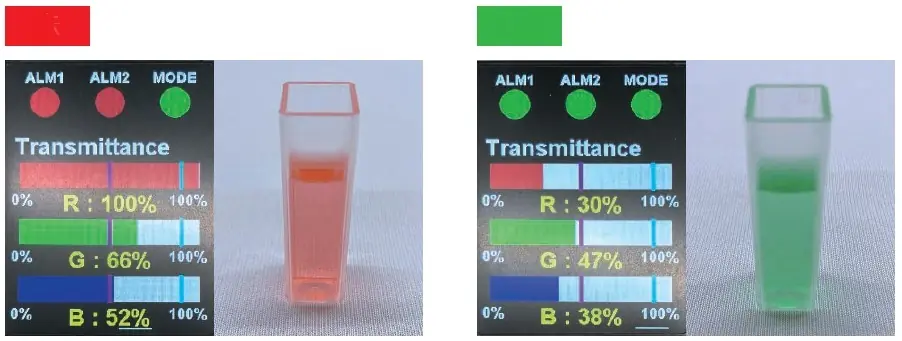

Colored waste water-RGB

Applications

  • Industrial wastewater
  • Effluent discharge monitoring
  • Food, chemical, and paper industries
  • Water reuse and environmental compliance
  • Alternative to expensive color or turbidity sensors

Technical Specifications

ParameterSpecification
Measurement Range0–100% transmission / 0.00–2.00 absorbance / 0–100% attenuation
Measurement FrequencyEvery ~5 seconds (value held during cleaning)
Sensor TypeSubmersible (in-tank or channel)
Cleaning MethodAutomatic air purge (0.05–0.50 MPa)
Power SupplyAC 100 V ±10%, 50/60 Hz, approx. 6 W
Signal Output2 × 4–20 mA analog outputs (configurable per RGB channel), alarm, and fault relays
Sensor DimensionsØ 90 × 300 mm
Display Unit Dimensions160 × 260 × 130 mm
Cable Length5 meters (sensor to display)


With its fast setup, automatic cleaning, and straightforward 4–20 mA output, the ECD-100 is ideal for any site where discoloration indicates contamination, process deviations, or product loss.

  • Real-time color detection
  • Accurate RGB analysis
  • Perfect for wastewater & effluent monitoring
  • Plug & play installation
  • Automatic air cleaning
  • Direct integration with your system

Specifications

Model nameECD-100 Specifications: Color Detector Technical Data | Acni
Model numberECD-100
Technologycoming soon
Electrical
Unit phase Ø voltageAC 100 V ±10%, 50/60 Hz
Unit power consumption6 watts
Dimensions & weightMetricImperial
HS code9027-9090

Frequently Asked Questions

  1. What is the main purpose of the ECD-100?

    The ECD-100 is designed to monitor treated water and effluent discharge at factories or construction sites. It detects sudden "color abnormalities" (discoloration) in real-time to prevent the spread of damage from drainage accidents.

  2. How does this differ from a standard turbidity sensor?

    Unlike traditional turbidity meters that primarily measure cloudiness, the ECD-100 serves as a simple alternative that specifically monitors color via Visible Light Absorption. It uses RGB-LEDs (400–700nm) to detect changes in transparency, absorbance, and attenuation across the red, green, and blue spectrums.

  3. What industries benefit most from this sensor?

    It is ideal for the textile and dyeing industry, paper and pulp mills, food and beverage processing, chemical manufacturing, and any facility monitoring effluent discharge for environmental compliance.

  4. Can the sensor distinguish between different colors?

    Yes. By analyzing the balance of RGB (Red, Green, and Blue) transmission, the sensor can help predict or identify specific colors in the wastewater.

  5. What are the key advantages of using the ECD-100?

    It offers low initial and running costs, requires no reagents, and provides high-speed continuous measurement without the need for specialized maintenance skills.

  6. How fast does the sensor react to a leak?

    The sensor has a detection cycle of approximately 5 seconds and a total response time of 30 seconds, ensuring that changes are reported almost immediately.

  7. Does the sensor require frequent manual cleaning?

    No. It is equipped with an automatic cleaning function that uses compressed air (0.05–0.50 MPa) to keep the detection head clear.

  8. How is the unit installed?

    The Detection Unit is designed for underwater immersion, while the Control Unit can be mounted on a pole or a flat surface. A 5-meter fiber optic cable connects the two units.
