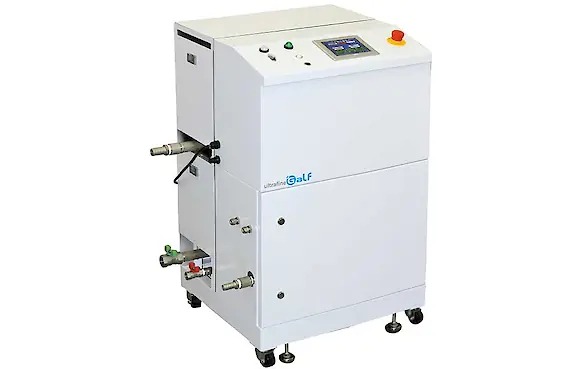

high-concentrationGaLF specs
High-concentration GaLF specsheet. A spec sheet for the ultrafine bubble or nanobuble generator.
Back to: HiCon GaLF
| Description | Metric | Imperial | |
|---|---|---|---|
| 1 | Model name | high-concentrationGaLF | high-concentrationGaLF |
| 2 | Model number | FZ1N-10 | FZ1N-10 |
| 3 | Technology | Pressurized Dissolution | Pressurized Dissolution |
| Liquid | Metric | Imperial | |
| 4 | Flow / minute | 17 Liter | 4.4 Gallon |
| 5 | Flow / hour | 1.0 M3 | 35.4 CF |
| 6 | water temperature minimum | 0 ℃ | 32 ℉ |
| 7 | water temperature maximum | 50 ℃ | 122 ℉ |
| 8 | Strainer availability and size | Yes 400 μm | Yes 400 μm |
| 9 | Recommended inlet filter(s) | Small pump inlet filter series | Small pump inlet filter series |
| Ambient | Metric | Imperial | |
| 10 | Ambient temperature minimum | 0 ℃ | 32 ℉ |
| 11 | Ambient temperature maximum | 45 ℃ | 113 ℉ |
| 12 | Relative humidity minimum | 45 % | 45 % |
| 13 | Relative humidity maximum | 85 % | 85 % |
| Gas | Metric | Imperial | |
| 14 | Flow / minute | 0.8 Liter | 0.2 Gallon |
| 15 | Flow / hour | 51 Liter | 13 Gallon |
| 16 | Pressure | 0.001 kPa | 0 PSI |
| 17 | Gas quality | Do not use corrosive gases. Use of Oxygen, Carbon Dioxide, Nitrogen or Ambient Air is allowed. | Do not use corrosive gases. Use of Oxygen, Carbon Dioxide, Nitrogen or Ambient Air is allowed. |
| Electrical | Metric | Imperial | |
| 18 | Unit phase Ø voltage | 1 Ø 100 ~ 120 VAC | 1 Ø 100 ~ 120 VAC |
| 19 | Unit power consumption | 2000 watts | 2000 watts |
| 20 | Wetted parts | SUS304, SUS303, SUS316, SCS13, SCS14, SUS630, PP Nylon, PFE, EPDM, SiC, PTFE, NBR | SUS304, SUS303, SUS316, SCS13, SCS14, SUS630, PP Nylon, PFE, EPDM, SiC, PTFE, NBR |
| 21 | Pump model | Grundfos CRN1-15-A-FGJ-G-V-HQQV | Grundfos CRN1-15-A-FGJ-G-V-HQQV |
| 22 | Pump phase Ø voltage | 3 Ø 200-240 D/380-415 Y V | 3 Ø 200-240 D/380-415 Y V |
| 23 | Pump motor 50Hz | 750 Watt | 1.0 hp |
| 24 | Pump head 50Hz | 69.6 Meter | 228 ft |
| 25 | Pump suction method | Vertical multistage centrifugal pump | Vertical multistage centrifugal pump |
| 26 | Pump pressure setting | Automatic | Automatic |
| 27 | Control | PLC-control | PLC-control |
| Connections | Metric | Imperial | |
| 28 | Water inlet | 25A hose connector ~ 1" | 25A hose connector ~ 1" |
| 29 | Water outlet | 20A hose connector ~ 3/4" | 20A hose connector ~ 3/4" |
| 30 | Gas inlet | 10 mm push to connect fitting or 3/8" on request | 10 mm push to connect fitting or 3/8" on request |
| Dimensions & weight | Metric | Imperial | |
| 31 | Dim. (w) x (d) x (h) | 600 x 600 x 1100 mm | 23.6 x 23.6 x 43.3 inch |
| 32 | weight | 100 Kg | 220.5 lbs. |
| 33 | Shipping dim. (w)x(d)x(h) | 80 x 80 x 130 cm | 31 x 31 x 51 inch |
| 34 | Shipping weight | 120 Kg | 265 lbs. |
| Remarks | |||
| 35 | Other remarks | ||
