microStar FS752DC-SS3 specs

microStar Ozone

microStar ozone hammermill-rotation millibubble generator FS752DC-SS3 spec sheet.

Download Brochure

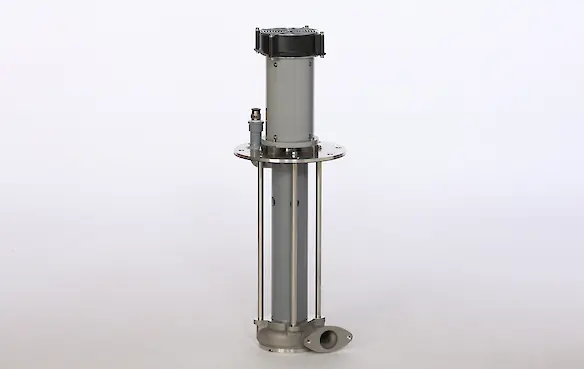

acniti microstar millibubble generator
Back to: microStar Ozone
DescriptionMetricImperial
1 Model name microStar FS752DC-SS3 microStar FS752DC-SS3
2 Model number FS752DC-SS3 FS752DC-SS3
3 Technology Hammermill Hammermill
LiquidMetricImperial
4 Flow / minute 400 Liter 106 Gallon
5 Flow / hour 24,000 Liter 6,340.1 Gallon
6 water temperature minimum 0 ℃ 32 ℉
7 water temperature maximum 40 ℃ 104 ℉
AmbientMetricImperial
8 Ambient temperature minimum -20 ℃ -4 ℉
9 Ambient temperature maximum 40 ℃ 104 ℉
GasMetricImperial
10 Minimum flow / minute 0.0 Liter 0.0 Gallon
11 Maximum flow / minute 110 Liter 29 Gallon
12 Minimum flow / hour 0.0 Liter 0.0 Gallon
13 Maximum flow / hour 6,600.0 Liter 1,743.5 Gallon
14 Gas quality Air, O2, (O3), N2, CO2 Air, O2, (O3), N2, CO2
ElectricalMetricImperial
15 Unit phase Ø voltage Input: 3 Ø 200 VAC => Output: 3 Ø 200VDC Input: 3 Ø 200 VAC => Output: 3 Ø 200VDC
16 Unit power consumption 750 watts 750 watts
17 Wetted parts Ethylene propylene, FKM, Fluor, PVC, SUS316L, SUS316, POM Ethylene propylene, FKM, Fluor, PVC, SUS316L, SUS316, POM
18 Pump model Motor model: 4 poles SPM type brushless DC motor Motor model: 4 poles SPM type brushless DC motor
19 Control Frequency Drive Frequency Drive
ConnectionsMetricImperial
20 Water inlet submerge to appropriate depth as per manual submerge to appropriate depth as per manual
21 Gas inlet 22mm 22mm
Dimensions & weightMetricImperial
22 Dim. (w) x (d) x (h) 230 x 230 x 640 mm 9.1 x 9.1 x 25.2 inch
23 weight 18 Kg 39.7 lbs.
24 Shipping dim. (w)x(d)x(h) 40 x 80 x 40 cm 16 x 31 x 16 inch
25 Shipping weight 20 Kg 44 lbs.
Remarks
26 Other remarks
  • The microstar 752 series generates effectively nanobubbles in a 10 meter diameter circel with a depth of 2 meter for short model (SS / SW).

  • MicroStar is not suitable for underwater / submersible use.

  • The microstar DC series requires a cooling fan on top op de motor, which needs a single phase 100 ~115 or 200~240 ac volt input. 10~15 Watt

  • Regular maintenance: replace packing and oil seal
