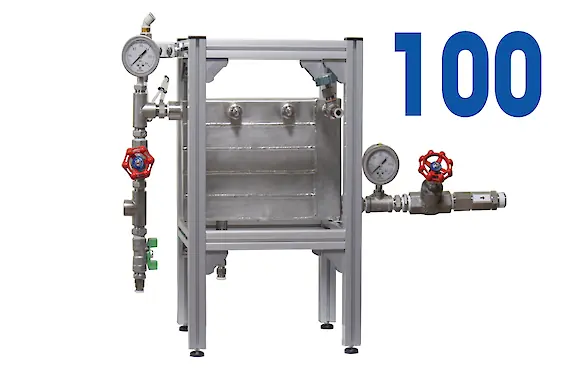

blenderGaLF 100 SUS 304 package specs
ultrafine blenderGaLF 100 SUS 304 package spec sheet. A spec sheet for the blenderGaLF nanobuble generator.
Back to: blenderGaLF
| Description | Metric | Imperial | |
|---|---|---|---|
| 1 | Model name | blenderGaLF 100 SUS 304 package | blenderGaLF 100 SUS 304 package |
| 2 | Model number | FZ9A-100P-304 | FZ9A-100P-304 |
| 3 | Technology | Pressurized Dissolution | Pressurized Dissolution |
| Liquid | Metric | Imperial | |
| 4 | Flow / minute | 100 Liter | 26 Gallon |
| 5 | Flow / hour | 6.0 M3 | 211.9 CF |
| 6 | water temperature minimum | 0 ℃ | 32 ℉ |
| 7 | water temperature maximum | 50 ℃ | 122 ℉ |
| 8 | Recommended inlet filter(s) | Medium pump inlet filter series | Medium pump inlet filter series |
| Ambient | Metric | Imperial | |
| 9 | Ambient temperature minimum | 0 ℃ | 32 ℉ |
| 10 | Ambient temperature maximum | 50 ℃ | 122 ℉ |
| 11 | Relative humidity minimum | 0 % | 0 % |
| 12 | Relative humidity maximum | 90 % | 90 % |
| Gas | Metric | Imperial | |
| 13 | Flow / minute | 5.0 Liter | 1.3 Gallon |
| 14 | Flow / hour | 300 Liter | 79 Gallon |
| 15 | Gas quality | Ozone, Oxygen, Carbon Dioxide, Nitrogen or Ambient Air | Ozone, Oxygen, Carbon Dioxide, Nitrogen or Ambient Air |
| 16 | Gas remark | O3 ~ 100 kPa 5 lpm concentration: 2.5 - 5.0 mg/l | O3 ~ 100 kPa 5 lpm concentration: 2.5 - 5.0 mg/l |
| Pump | |||
| Connections | Metric | Imperial | |
| 17 | Water inlet | R 1" | R 1" |
| 18 | Water outlet | RC1 | RC1 |
| 19 | Gas inlet | 6 mm | 6 mm |
| Dimensions & weight | Metric | Imperial | |
| 20 | HS code | 8479.82.0040 | 8479.82.0040 |
| Remarks | |||
| 21 | Other remarks | ||
