Oxiti-01-115V PSA Laboratory Oxygen Generator Specifications

Oxiti Industrial

Complete technical specifications for the Oxiti-01-115V PSA laboratory oxygen generator for non-medical research applications. Delivers 0.1-1 LPM at 87-96% purity for analytical instruments, ozone generation, cell culture, biological incubation, and microreactors. Designed for North American 115V laboratory systems with compact, reliable performance. Not for medical or patient care use.

Download Brochure

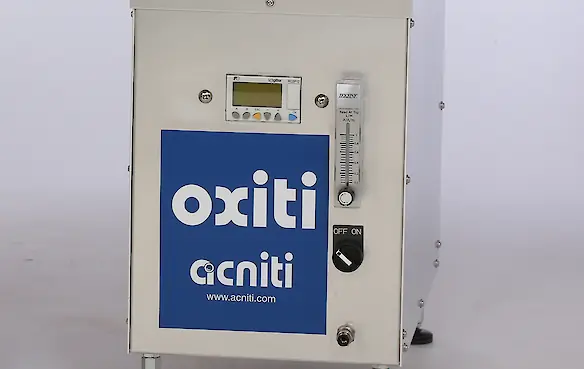

oxiti laboratory oxygen concentrator
Back to: Oxiti Industrial
DescriptionMetricImperial
1 Model name Oxiti 1 LPM 115V: PSA Lab Oxygen Generator Specs | Acniti Oxiti 1 LPM 115V: PSA Lab Oxygen Generator Specs | Acniti
2 Model number oxiti-01-115/60 oxiti-01-115/60
AmbientMetricImperial
3 Ambient temperature minimum 10 ℃ 50 ℉
4 Ambient temperature maximum 40 ℃ 104 ℉
5 Relative humidity minimum 15 % 15 %
6 Relative humidity maximum 95 % 95 %
GasMetricImperial
7 Minimum flow / minute 0.1 Liter 0.0 Gallon
8 Maximum flow / minute 1.0 Liter 0.3 Gallon
9 Minimum flow / hour 6.0 Liter 1.6 Gallon
10 Maximum flow / hour 60 Liter 16 Gallon
11 Pressure 75 kPa 11 PSI
12 Gas quality 87% to 96% Oxygen 87% to 96% Oxygen
13 Gas remark ambient air ambient air
ElectricalMetricImperial
14 Unit phase Ø voltage 1 Ø 115 VAC 60 Hz 1 Ø 115 VAC 60 Hz
15 Unit power consumption 135 watts 60 Hz 135 watts 60 Hz
ConnectionsMetricImperial
16 Gas inlet 6 mm push to connect fitting or 1/4" on request 6 mm push to connect fitting or 1/4" on request
Dimensions & weightMetricImperial
17 Dim. (w) x (d) x (h) 500 x 270 x 450 mm 19.7 x 10.6 x 17.7 inch
18 weight 14 Kg 30.9 lbs.
19 Shipping dim. (w)x(d)x(h) 62 x 35 x 46 cm 24 x 14 x 18 inch
20 Shipping weight 17 Kg 37 lbs.
Remarks
21 Other remarks
  • Altitude 21 degrees up to 1500 meter (5000 ft) without degradation, contact us for more information regarding 1,500 m to 4,000 m (5,000 - 13,000 ft)

  • Storage temperature from - 20 °C to 60 °C (0°F to 140 °F)

  • unprotected or inadequately ventilated environment or improper control power may cause damage to the oxygen concentrator and is not covered under warranty.

Important Notice

This oxygen generator is designed for industrial, laboratory, and research applications only. Not intended for medical use or patient care. For industrial oxygen generation in aquaculture, water treatment, ozone generation, and laboratory applications.
