Oxiti-05-115V PSA Industrial Oxygen Generator Specifications

Oxiti Industrial

Complete technical specifications for the Oxiti-05-115V PSA industrial oxygen generator for non-medical research applications. Delivers 1-5 LPM at 87-96% purity for aquaculture, pond aeration, and water treatment applications. Designed for North American 115V systems with robust performance in demanding industrial environments. Not for medical or patient care use.

Download Brochure

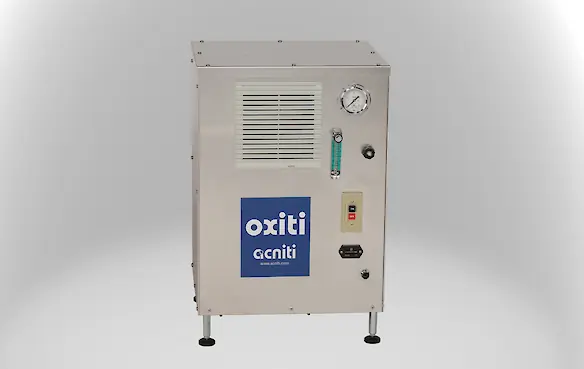

oxiti 05 industrial oxygen concentrator 05 115V
Back to: Oxiti Industrial
DescriptionMetricImperial
1 Model name Oxiti 5 LPM 115V: PSA Oxygen Generator Specs | Acniti Oxiti 5 LPM 115V: PSA Oxygen Generator Specs | Acniti
2 Model number oxiti-05-115 oxiti-05-115
3 Technology PSA PSA
AmbientMetricImperial
4 Ambient temperature minimum 10 ℃ 50 ℉
5 Ambient temperature maximum 40 ℃ 104 ℉
6 Relative humidity minimum 15 % 15 %
7 Relative humidity maximum 95 % 95 %
GasMetricImperial
8 Minimum flow / minute 1.0 Liter 0.3 Gallon
9 Maximum flow / minute 5.0 Liter 1.3 Gallon
10 Minimum flow / hour 60 Liter 16 Gallon
11 Maximum flow / hour 300 Liter 79 Gallon
12 Pressure 35 kPa 5 PSI
13 Gas quality 87% to 96% Oxygen 87% to 96% Oxygen
14 Gas remark ambient air ambient air
ElectricalMetricImperial
15 Unit phase Ø voltage 1 Ø 115 VAC 60 Hz or 50 Hz 1 Ø 115 VAC 60 Hz or 50 Hz
16 Unit power consumption 605 watts 60 Hz or 480 watts 50 Hz 605 watts 60 Hz or 480 watts 50 Hz
ConnectionsMetricImperial
17 Gas inlet 10 mm push to connect fitting or 3/8" on request 10 mm push to connect fitting or 3/8" on request
Dimensions & weightMetricImperial
18 Dim. (w) x (d) x (h) 480 x 460 x 690 mm 18.9 x 18.1 x 27.2 inch
19 weight 27 Kg 59.5 lbs.
20 Shipping dim. (w)x(d)x(h) 53 x 52 x 70 cm 21 x 20 x 28 inch
21 Shipping weight 30 Kg 66 lbs.
Remarks
22 Other remarks
  • Altitude 21 degrees up to 1500 meter (5000 ft) without degradation, contact us for more information regarding 1,500 m to 4,000 m (5,000 - 13,000 ft)

  • Storage temperature from - 20 °C to 60 °C (0°F to 140 °F)

  • unprotected or inadequately ventilated environment or improper control power may cause damage to the oxygen concentrator and is not covered under warranty.

Important Notice

This oxygen generator is designed for industrial, laboratory, and research applications only. Not intended for medical use or patient care. For industrial oxygen generation in aquaculture, water treatment, ozone generation, and laboratory applications.
